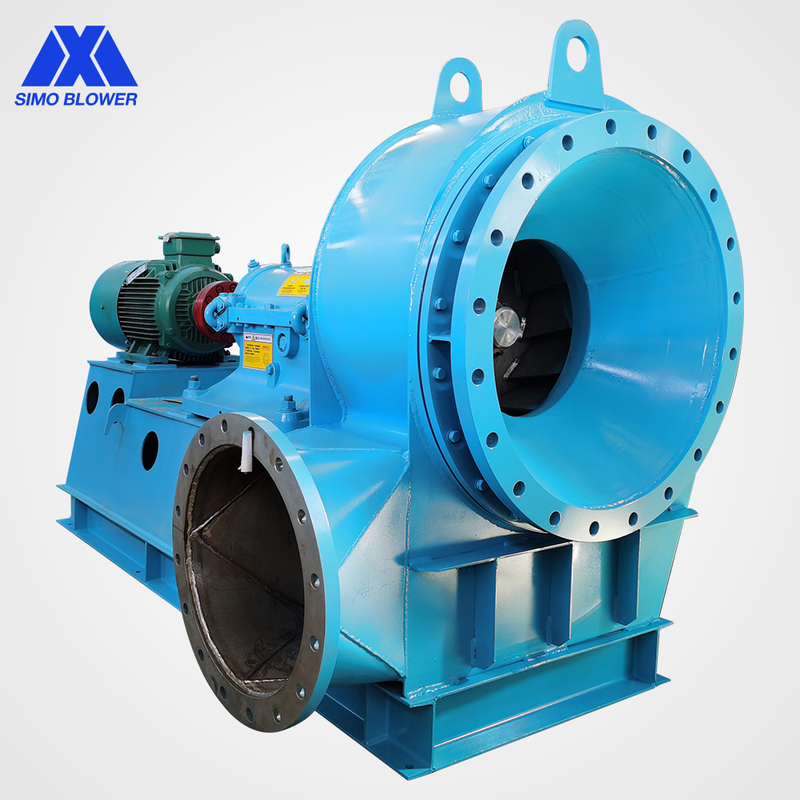

Industrial Three-Phase Power High-Quality Dust Removal Centrifugal Blower Fan

Name: Industrial Three-Phase Power High-Quality Dust Removal Centrifugal Blower Fan
Brand: Xinxiang SIMO Blower Co., Ltd.
SKU: SIMO Üfleyici 5-12
Availability: InStock

Ürün Ayrıntıları:

Menşe yeri:	ÇİN
Marka adı:	SIMO BLOWER
Sertifika:	CE/ISO9001/ISO45001
Model numarası:	SIMO Üfleyici 5-12

Ayrıntılı Bilgiler

Menşe yeri:

ÇİN

Marka adı:

SIMO BLOWER

Sertifika:

CE/ISO9001/ISO45001

Model numarası:

SIMO Üfleyici 5-12

Uygulanabilir endüstriler:

Üretim tesisi, inşaat işleri, enerji ve madencilik, endüstriyel üretim sistemi

Satış sonrası hizmet sağlanan hizmet:

Saha kurulumu, devreye alma ve eğitim

Menşe yeri:

Henan, Çin

Gerilim:

380V/415V/440V/660V/6KV/10KV

Özelleştirilmiş Destek:

OEM, ODM, OBM

Bıçak malzemesi:

Karbon çelik, paslanmaz çelik

Montaj:

Serbest durma

Motor:

Dayanıklı Pervane Bıçakları Giyin

Pervane:

Geriye doğru pervane bıçağı

Garanti:

1 yıl

Vurgulamak:

High Light

Vurgulamak:

industrial three-phase centrifugal fan

dust removal centrifugal blower

high-power industrial fan

Trading Information

Min sipariş miktarı:

≥1 Set

Fiyat:

$500-1,0000.00/set

Ambalaj bilgileri:

1. Standart İhracat Ahşap Kılıf 2. Steel Palet Su Geçirmez Kumaş Paketi 3. Gereksiniminizi karşılama

Teslim süresi:

35 gün müzakere edilecek

Ödeme koşulları:

L/c, t/t ,, d/p

Yetenek temini:

30 gün 300 set

Ürün Tanımı

Industrial Three-Phase Power High-Quality Dust Removal Centrifugal Blower Fan

This type of dry gas sealed fan is designed for the chemical industry, capable of effectively conveying harmful corrosive gases. Constructed with corrosion-resistant materials, these fans ensure stable operation in harsh environments, meeting the safety and reliability requirements of chemical production.

Product Features

Capable of outputting a higher outlet pressure while providing more gas flow with lower noise. Stable operation at higher media temperatures.
The fan speed can be flexibly set by matching different pulley diameters to make the fan run at the highest efficiency point and reduce energy waste.
Motor sliding guides are provided for easy tensioning of the belt to reduce energy loss due to belt slack.
The bearing housing is reserved for temperature and vibration sensor mounting positions, for convenient installation of the fan operation monitoring device.
Uses liquid lubricant, eliminating the need to open the bearing housing to replace and fill the oil. The bearing housing is provided with an observation window for easy observation of the quality and stock of the lubricating oil.
The bearing housing uses a labyrinth mechanical seal, a unique leak-proof oil design inside, a vent hole at the top, and sealant on the joint, completely eliminating the possibility of oil leakage.
The impeller is annealed to completely eliminate the internal stress generated during welding, ensuring that the impeller does not undergo creep and cracks.

Performance

Series no.	5-12 series	Feature selection
Performance	Impeller diameter	400-3300mm
	Rotation speed	≤4000rpm
	Pressure range	684-8687Pa
	Flow range	590.4-700735m³/h
Structure	Blade type	Backward, Straight, Aerofoil type
	Impeller support	SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet), Overhung type
	Lubrication method	Oil bath lubrication, grease lubrication, lubrication oil station (Can be specified)
Cooling method	Air cooling, Water cooling, Oil cooling (Can be specified)
Driven mode	Direct driven, Coupling driven, Belt driven (Can be specified)
Gas composition	Gas temperature	Normal \| Customer request \| Customer request \| ≥250ºC \| Customer request
Gas composition	Gas characteristic	Clean gas \| Corrosive gas \| Particulate dust \| High temperature gas \| Flammable gas, explosive gas
System configuration	Motor brand	Chinese famous brand, ABB, Siemens, WEG etc (Can be specified)
	Impeller	High quality carbon steel \| FRP, Stainless steel, Rubber Lining \| Wear-resistant layer or wear-resistant liner, ceramic patch \| High temperature high quality alloy steel \| FRP, Aluminum alloy (Can be specified)
	Air inlet cone	High quality carbon steel \| FRP, Stainless steel, Rubber Lining \| High quality carbon steel \| High quality carbon steel \| High quality carbon steel (Can be specified)
	Casing	High quality carbon steel \| FRP, Stainless steel, Rubber Lining \| High quality carbon steel \| High quality carbon steel \| High quality carbon steel (Can be specified)
	Air damper	High quality carbon steel \| FRP, Stainless steel, Rubber Lining \| High quality carbon steel \| High quality carbon steel \| High quality carbon steel (Can be specified)
	Main shaft	High strength carbon steel, Alloy structural steel (Can be specified)
	Bearing	ZWZ, SKF, FAG, NSK (Can be specified)
	Bearing housing	Cast iron
Foundation bolts	GB799-1988
Option parts	System base frame, Protective screening, Silencer, Inlet & Outlet flexible connections, Inlet & Outlet counter flange, Air damper, Electric actuator, Shock absorber, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibration sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument.
