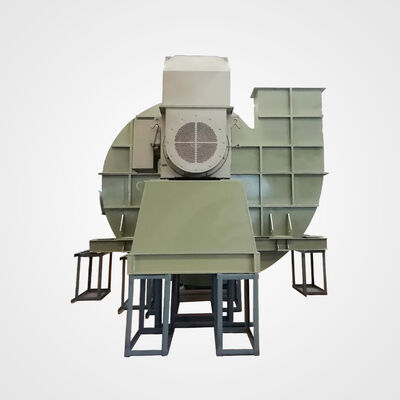

Heavy-Duty Large Capacity Centrifugal Fan for Industrial Boilers

Adedi:	1 TAKIM
Price:	Anlaşılabilir
Standart paketleme:	İhracat Tahta Sandık Ambalajı, Çelik palet Ambalajı
Teslim süresi:	15-35 Gün
Ödeme yöntemi:	T/T, L/C, D/P
Tedarik Kapasitesi:	Ayda 500 Takım

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri

Henan Çin

Marka adı

Sertifika

CE, ISO9001:2008,TUV

Model numarası

SIMO Üfleyici 4-10

Document

santrifüj fan

Özellik:

yüksek sıcaklık

Satış Sonrası Hizmet Sağlanıyor:

Saha kurulumu, devreye alma ve eğitim

Aktarma organları:

Doğrudan/Kaplin Tahrikli/V Kayış Tahrikli

Gürültü:

İsteğe bağlı

Rulman Tipi:

Rulman

Anahtar Kelimeler:

yüksek sıcaklık fanı

Garanti:

1 Yıl

Aftexr-Satış Hizmeti Verildi:

Saha kurulumu, devreye alma ve eğitim

Ürün Tanımı

Heavy-Duty Large Capacity Centrifugal Fan for Industrial Boilers

Designed for demanding industrial boiler applications, our heavy-duty large capacity centrifugal fan ensures reliable and efficient air handling in high-temperature, high-pressure environments. Engineered with robust construction and precision-balanced components, it delivers stable performance for combustion air supply, flue gas recirculation, and exhaust ventilation in power plants, chemical facilities, and processing industries.

Key features include:

High volumetric airflow and pressure capabilities for large-scale boiler systems
Heat-resistant materials and reinforced impeller design for extended service life
Energy-efficient operation with optimized aerodynamics to reduce power consumption
Customizable configurations to meet specific boiler specifications and space constraints

Built for continuous heavy-duty operation with minimal maintenance, this fan supports optimal combustion efficiency, emission control, and overall system reliability. It provides a durable, cost-effective solution for industrial boiler ventilation needs, combining performance, durability, and sustainability.

The following datas are only part of performance of our product.
If you can't find the datas you need, pls send us your performance requirements
we will provide you customized design service.

Series no.	6-04 series	Feature selection
		Normal	anti-corrosion	wear-resisting		High temperature		anti-explosion	Remarks
Performance	Impeller diameter	400-3000mm
	Rotation speed	≤4000rpm
	Pressure range	2170-21000Pa
	Flow range	563-380000m³/h
Structure	Blade type	Backward, Straight, Aerofoil type
	Impeller support	SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet), Overhung type
	Lubrication method	Oil bath lubrication, grease lubrication, lubrication oil station							Can be specified
	Cooling method	Air cooling, Water cooling, Oil cooling							Can be specified
	Driven mode	Direct driven, Coupling driven, Belt driven							Can be specified
Gas composition	Gas temperature	Normal	Customer request	Customer request	≥250ºC		Customer request
	gas characteristic	Clean gas	Corrosive gas	Particulate dust	High temperature gas		Flammable gas, explosive gas
System configuration	Motor brand	Chinese famous brand, ABB, Siemens, WEG etc							Can be specified
	Impeller	High quality carbon steel	FRP, Stainless steel, Rubber Lining	Wear-resistant layer or wear-resistant liner, ceramic patch	High temperature high quality alloy steel		FRP, Aluminum alloy		Can be specified
	Air inlet cone	High quality carbon steel	FRP, Stainless steel, Rubber Lining	High quality carbon steel	High quality carbon steel		High quality carbon steel		Can be specified
	Casing	High quality carbon steel	FRP, Stainless steel, Rubber Lining	High quality carbon steel	High quality carbon steel		High quality carbon steel		Can be specified
	Air damper	High quality carbon steel	FRP, Stainless steel, Rubber Lining	High quality carbon steel	High quality carbon steel		High quality carbon steel		Can be specified
	Main shaft	High strength carbon steel, Alloy structural steel							Can be specified
	Bearing	ZWZ, SKF, FAG, NSK							Can be specified
	Bearing housing	Cast iron
	Foundation bolts	GB799-1988
Option parts	System base frame, Protective screening, Silencer, Inlet & Outlet flexible connections, Inlet & Outlet counter flange, Air damper, Electric actuator, Shock absorber, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibration sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument.

Heavy-Duty Large Capacity Centrifugal Fan for Industrial Boilers 1

Heavy-Duty Large Capacity Centrifugal Fan for Industrial Boilers 3

Heavy-Duty Large Capacity Centrifugal Fan for Industrial Boilers 4

Heavy-Duty Large Capacity Centrifugal Fan for Industrial Boilers 12

Heavy-Duty Large Capacity Centrifugal Fan for Industrial Boilers 13
