Industrial-Grade Protection Zero-Leakage Industrial Centrifugal Fan for Hazardous Environments

Name: Industrial-Grade Protection Zero-Leakage Industrial Centrifugal Fan for Hazardous Environments
Brand: Xinxiang SIMO Blower Co., Ltd.
SKU: SIMO Üfleyici 4-10
Price: 10000.00 USD
Availability: InStock

Ürün Ayrıntıları:

Menşe yeri:	Henan Çin
Marka adı:	SIMO
Sertifika:	CE, ISO9001:2008,TUV
Model numarası:	SIMO Üfleyici 4-10

Ayrıntılı Bilgiler

Menşe yeri:

Henan Çin

Marka adı:

SIMO

Sertifika:

CE, ISO9001:2008,TUV

Model numarası:

SIMO Üfleyici 4-10

Model Hayır:

4-10

Köken:

ÇİN

Gerilim:

380V/415V/440V/660V/6KV/10KV

Güç kaynağı:

Üç Fazlı AC Motor

Yatak türü:

Rulman yatağı

OEM hizmeti:

Sağlamak

Pervane:

aşınmaya dayanıklı pervane kanatları

Pervane Testi:

Dinamik beyazlatma ayarı

Satış sonrası hizmet sağlanan hizmet:

Saha kurulumu, devreye alma ve eğitim

Garanti:

1 yıl

Vurgulamak:

High Light

Vurgulamak:

industrial centrifugal fan zero leakage

heavy duty centrifugal fan hazardous environments

industrial-grade centrifugal fan protection

Trading Information

Min sipariş miktarı:

1 set

Fiyat:

Anlaşılabilir

Ambalaj bilgileri:

İhracat Tahta Sandık Ambalajı, Çelik Palet Ambalajı

Teslim süresi:

30-35 gün

Ödeme koşulları:

T/T, L/C, Ödeme Vadesi Tartışılabilir

Yetenek temini:

Ayda 500 set

Ürün Tanımı

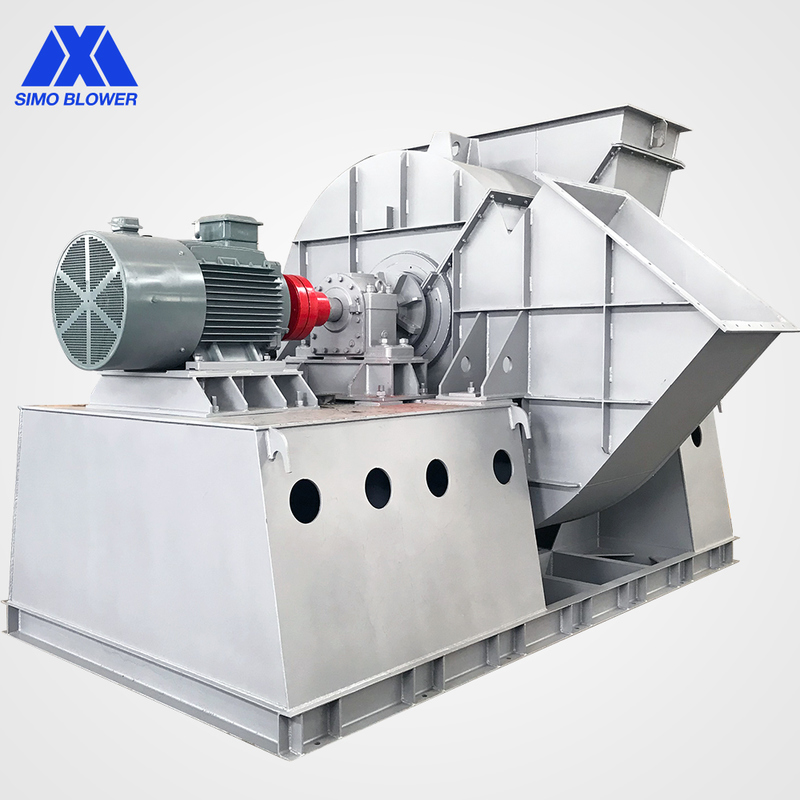

Industrial-Grade Protection Zero-Leakage Industrial Centrifugal Fan for Hazardous Environments

China Manufacturer High Temperature Industrial Smelting Furnace Centrifugal Air Blower Fan

Product Features:

Stable operation at high medium temperatures with large gas flow output and low noise
Optimized fan blade placement angle for increased wear resistance and longer service life
Flexible pressure and flow adjustment via air damper or optional variable frequency motor
High-strength materials selected for impeller and main shaft based on working conditions
Reduced investment and maintenance for systems with impeller diameters <1400mm at normal temperature

Product Parameters

Series no.	4-10 series	Feature selection
Performance	Impeller diameter	400-3000mm
	Rotation speed	≤4000rpm
	Pressure range	615-8302Pa
	Flow range	10696-952530m³/h
Structure	Blade type	Backward, Straight, Aerofoil type
	Impeller support	SWSI, DWDI, Overhung type
	Lubrication method	Oil bath, grease, lubrication oil station
Cooling method	Air cooling, Water cooling, Oil cooling (Can be specified)
Driven mode	Direct driven, Coupling driven, Belt driven (Can be specified)
Gas composition	Gas temperature	Normal, Customer request, ≥250ºC
Gas composition	Gas characteristic	Clean gas, Corrosive gas, Particulate dust, High temperature gas, Flammable/explosive gas
System configuration	Motor brand	Chinese famous brand, ABB, Siemens, WEG etc (Can be specified)
Impeller	Various materials available based on application requirements
Option parts	System base frame, Protective screening, Silencer, Flexible connections, Counter flange, Air damper, Electric actuator, Shock absorber, Couplings, Motor rain cover, Sensors, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument.

If you have requirements for our products, please provide your parameter information and our technical engineers will provide professional fan solutions.
