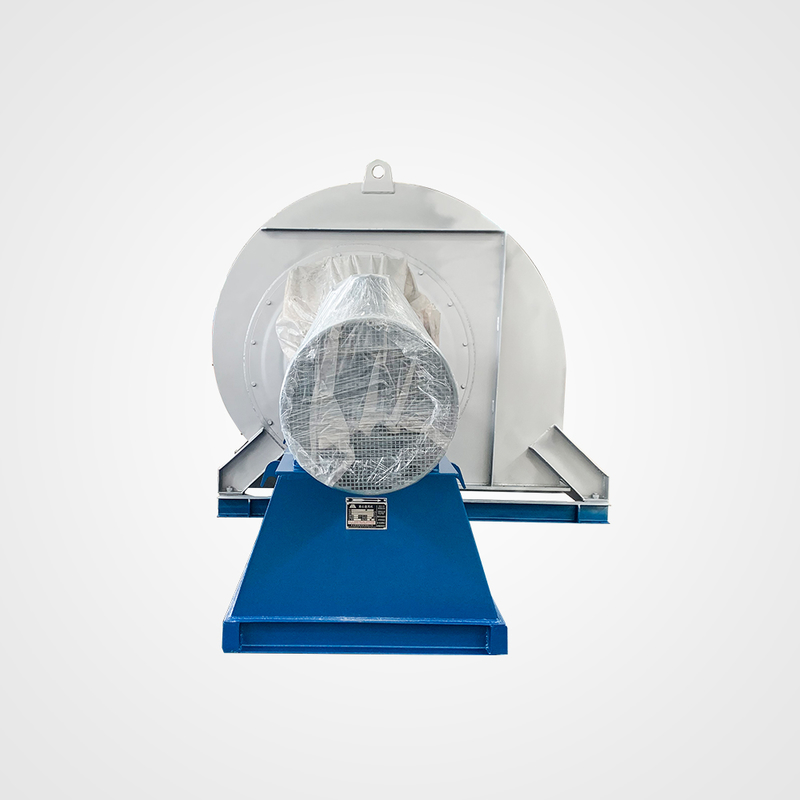

4-22kW Variable Speed Industrial Centrifugal Blower for Mineral Sintering

Name: 4-22kW Variable Speed Industrial Centrifugal Blower for Mineral Sintering
Brand: Xinxiang SIMO Blower Co., Ltd.
SKU: SIMO Blower 5-12
Price: 2,500.00 USD
Availability: InStock

Ürün Ayrıntıları:

Place of Origin:	Henan China
Marka adı:	SIMO
Sertifika:	CE, ISO9001:2008,TUV
Model Number:	SIMO Blower 5-12

Ayrıntılı Bilgiler

Place of Origin:

Henan China

Marka adı:

SIMO

Sertifika:

CE, ISO9001:2008,TUV

Model Number:

SIMO Blower 5-12

Application:

Industrial Exhaust Ventilation

Main shaft:

High-strength carbon structural steel

Motor type:

Three Phase AC Motor

Material:

Stainless Steel

Delivery time:

30 days

Color:

Customer's Requirement

Customized Support:

ODM OEM OBM

Mounting:

FREE STANDING

Warranty:

1 Year

keyword:

Blowers,Industrial Fan,High Efficiency Centrifugal Blower,Induced Draft Fan

Vurgulamak:

High Light

Vurgulamak:

4-22kW industrial centrifugal blower

variable speed mineral sintering blower

industrial centrifugal fan for sintering

Trading Information

Minimum Order Quantity:

1 Set

Fiyat:

Anlaşılabilir

Packaging Details:

Export Wooden Case Packing, Steel pallet Packing

Delivery Time:

15-35 Days

Payment Terms:

L/C, D/P, T/T

Supply Ability:

300sets 30days

Ürün Tanımı

4-22kw Variable Frequency Speed Regulation Mineral Powder Sintering Blower Induced Draft Fan

Product Attributes

Attribute	Value
Application	Industrial Exhaust Ventilation
Main shaft	High-strength carbon structural steel
Motor type	Three Phase AC Motor
Material	Stainless Steel
Delivery time	30 days
Color	Customer's Requirement
Customized Support	ODM OEM OBM
Mounting	FREE STANDING
Warranty	1 Year
Keyword	Blowers, Industrial Fan, High Efficiency Centrifugal Blower, Induced Draft Fan

Product Description

The 4-22kW Variable Frequency Speed Regulation Sintering Blower & Induced Draft Fan is designed for mineral powder sintering lines, ideal for dust extraction and high-temperature gas handling. Featuring variable speed control, it offers adjustable airflow and pressure, ensuring energy efficiency and stable performance for metallurgy and building materials industries.

Specifications

Series no.	5-12series	Feature selection
Performance	Impeller diameter	400-3300mm
	Rotation speed	≤4000rpm
	Pressure range	684-8687Pa
	Flow range	590-700735m³/h
Structure	Blade type	Backward, Straight, Aerofoil type
	Impeller support	SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet), Overhung type
	Lubrication method	Oil bath lubrication, grease lubrication, lubrication oil station (Can be specified)
	Cooling method	Air cooling, Water cooling, Oil cooling (Can be specified)
Driven mode	Direct driven, Coupling driven, Belt driven (Can be specified)
Gas composition	Gas temperature	Normal, Customer request (≥250℃)
Gas composition	Gas characteristic	Clean gas, Corrosive gas, Particulate dust, High temperature gas, Flammable gas, explosive gas
System configuration	Motor brand	Chinese famous brand, ABB, Siemens, WEG etc (Can be specified)

Material Specifications

Component	Normal	Anti-corrosion	Wear-resisting	High temperature	Anti-explosion	Remarks
Impeller	High quality carbon steel	FRP, Stainless steel, Rubber Lining	Wear-resistant layer or wear-resistant liner, ceramic patch	High temperature high quality alloy steel	FRP, Aluminum alloy	Can be specified
Air inlet cone	High quality carbon steel	FRP, Stainless steel, Rubber Lining	High quality carbon steel	High quality carbon steel	High quality carbon steel	Can be specified
Casing	High quality carbon steel	FRP, Stainless steel, Rubber Lining	High quality carbon steel	High quality carbon steel	High quality carbon steel	Can be specified
Air damper	High quality carbon steel	FRP, Stainless steel, Rubber Lining	High quality carbon steel	High quality carbon steel	High quality carbon steel	Can be specified
Main shaft	High strength carbon steel, Alloy structural steel (Can be specified)
Bearing	ZWZ, SKF, FAG, NSK (Can be specified)

Product Features

Capable of outputting higher outlet pressure while providing more gas flow with lower noise. Stable operation at higher media temperatures.
Fan speed can be flexibly set by matching different pulley diameters to make the fan run at the highest efficiency point and reduce energy waste.
Motor sliding guides are provided for easy tensioning of the belt to reduce energy loss due to belt slack.
Bearing housing is reserved for temperature and vibration sensor mounting positions, for convenient installation of fan operation monitoring devices.
Uses liquid lubricant - no need to open the bearing housing to replace and fill oil. Bearing housing has an observation window for easy monitoring of lubricating oil quality and quantity.
Bearing housing uses a labyrinth mechanical seal with unique leak-proof oil design inside, vent hole at top, and sealant on joint, completely eliminating oil leakage possibility.
Impeller is annealed to completely eliminate internal stress generated during welding, ensuring no creep or cracks.
Impeller undergoes high standard dynamic balance correction to ensure stable fan operation.
All products are tested for running and vibration values after production for reliable operation.

Please provide the fan operating conditions and parameter information, and the business manager will give you a quote
