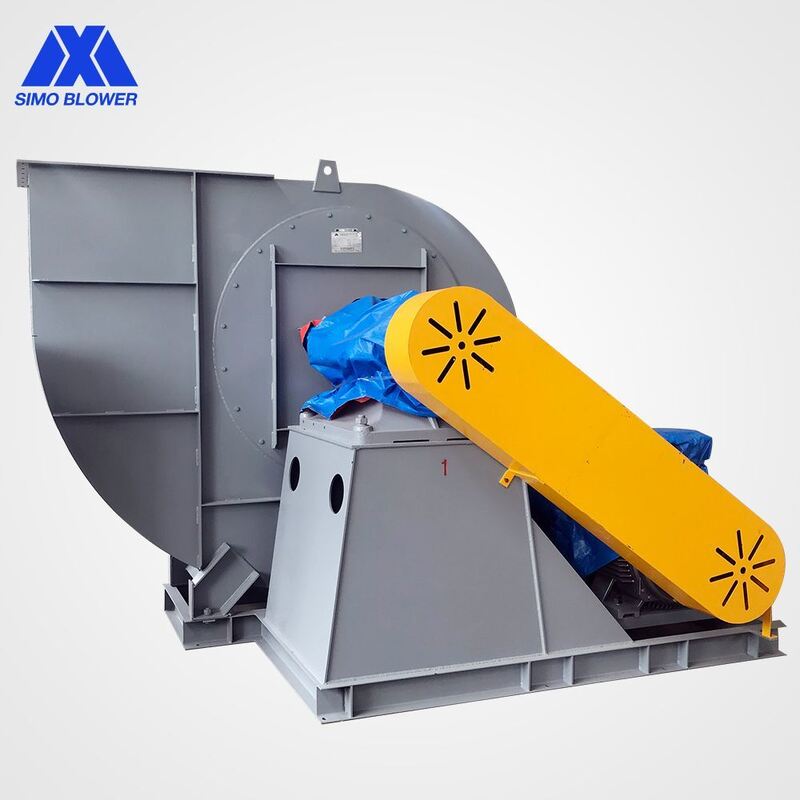

70kw Good Performance High Quality Boiler Centrifugal Blower Fan/Exhaust Fan/ Blower

Name: 70kw Good Performance High Quality Boiler Centrifugal Blower Fan/Exhaust Fan/ Blower
Brand: Xinxiang SIMO Blower Co., Ltd.
SKU: SIMO Üfleyici 5-55
Price: 4,000.00 USD
Availability: InStock

Ürün Ayrıntıları:

Menşe yeri:	Henan Çin
Marka adı:	SIMO
Sertifika:	CE, ISO9001:2008,TUV
Model numarası:	SIMO Üfleyici 5-55

Ayrıntılı Bilgiler

Menşe yeri:

Henan Çin

Marka adı:

SIMO

Sertifika:

CE, ISO9001:2008,TUV

Model numarası:

SIMO Üfleyici 5-55

Model numarası:

5-55

İsim:

Kazan Kaynaklı Taslak Fan

Menşei:

Çin

Gerilim:

380V/415V/440V/660V/6KV/10KV

Güç Kaynağı:

Üç Fazlı AC Motor

Yatak türü:

Rulman yatağı

OEM Hizmeti:

Sağlamak

Pervane Testi:

Dinamik beyazlatma ayarı

Montaj:

Serbest durma

Garanti:

1 yıl

Vurgulamak:

High Light

Vurgulamak:

70kw boiler centrifugal blower fan

high performance boiler exhaust fan

industrial boiler blower with warranty

Trading Information

Min sipariş miktarı:

1 takım

Fiyat:

Anlaşılabilir

Ambalaj bilgileri:

İhracat Tahta Sandık Ambalajı, Çelik Palet Ambalajı

Teslim süresi:

35 gün

Ödeme koşulları:

T/T, L/C, Ödeme Vadesi Tartışılabilir

Yetenek temini:

Ayda 500 set

Ürün Tanımı

70kw Good Performance High Quality Boiler Centrifugal Blower Fan/Exhaust Fan/Blower

The 5-10 series ventilator is a high efficiency and energy saving product developed by our company, which is used for ventilation and exhaust system of smelting, chemical, medicine and dust removal production lines.

In the coal-fired boiler system, the ventilation and induce draft systems of various boilers with evaporation capacity of 20 tons/hour to 800 tons/hour can be configured.

Performance

The following datas are only part of performance of our product.

If you can't find the datas you need, pls send us your performance requirements we will provide you customized design service.

70KW Good performance high quality centrifugal blower fan

Performance	Specification	Unit
Pressure range	1232~3867	Pa
Air flow range	3007-44413	m3/h
Impeller diameter	400~2800	mm
Speed	580~2900	rpm
Material	15kw centrifugal blower case: Q235, Q345, stainless steel (Design as special) 15kw centrifugal blower shaft: 45# steel, Q304, SS304, SS316L 15kw centrifugal blower impeller: Q304, 12Cr1Mov, 15Crmov, 15MnV
Medium	10---120	Dustiness<80 g/m3 (incombustible)
Motor	Siemens, ABB, WN, SIMO, LA (IP 54,55,56, 3 phase)
Optional components	System base frame Protective screening Silencer Inlet & Outlet pipeline compensator Inlet & Outlet flange Damper Electric actuator Shock isolator Diaphragm coupling Fluid coupling Motor rain cover Temperature sensor Vibrating sensor Soft starter Inverter Special Electrical Motor System monitoring Instrument Lube system Overhead lube tank

Manufacturing Process

Pursue excellent quality, make perfect product!

Application

SIMO BLOWER are mainly centrifugal fans and axial flow fans, covering more than 30 series and more than 2,000 specifications, which are widely used in electric power, metallurgy, building materials, coal, petrochemical, industrial kilns and other fields.
