High Efficiency Metallurgy Plant Using Industrial Centrifugal Blower Fan China Made

Name: High Efficiency Metallurgy Plant Using Industrial Centrifugal Blower Fan China Made
Brand: Xinxiang SIMO Blower Co., Ltd.
SKU: SIMO Üfleyici 2XTF5
Availability: InStock

Ürün Ayrıntıları:

Menşe yeri:	ÇİN
Marka adı:	SIMO BLOWER
Sertifika:	CE/ISO9001/ISO45001
Model numarası:	SIMO Üfleyici 2XTF5

Ayrıntılı Bilgiler

Menşe yeri:

ÇİN

Marka adı:

SIMO BLOWER

Sertifika:

CE/ISO9001/ISO45001

Model numarası:

SIMO Üfleyici 2XTF5

Ürün adı:

Yüksek verimli santrifüj fan

Motor:

Siemens/ABB/talebinizle

Montaj:

Serbest durma

Gerilim:

380V/415V/440V/660V/6KV/10KV

Özelleştirilmiş Destek:

ODM OEM OBM

Satış sonrası hizmet sağlanan hizmet:

Saha kurulumu, devreye alma ve eğitim

Garanti:

1 yıl

Vurgulamak:

High Light

Vurgulamak:

industrial centrifugal blower fan

high efficiency metallurgy fan

China made centrifugal blower

Trading Information

Min sipariş miktarı:

≥1 Set

Fiyat:

$500-1,00000.00/set

Ambalaj bilgileri:

1. Standart İhracat Ahşap Kılıf 2. Steel Palet Su Geçirmez Kumaş Paketi 3. Gereksiniminizi karşılama

Teslim süresi:

35 gün (müzakere edilecek)

Ödeme koşulları:

L/c, t/t, d/p

Yetenek temini:

30 gün 300 set

Ürün Tanımı

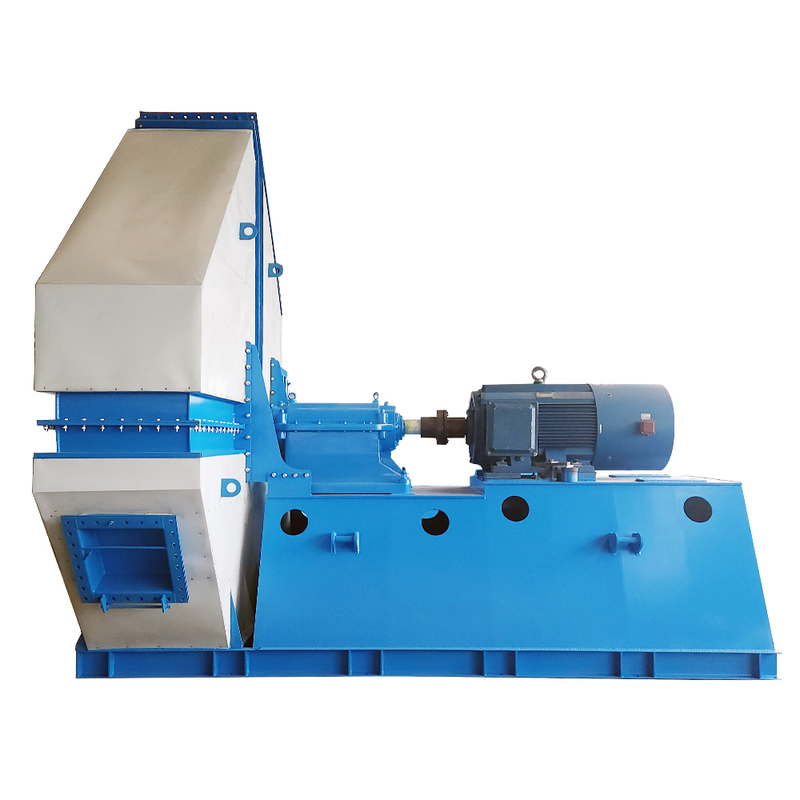

High Efficiency Metallurgy Plant Using Industrial Centrifugal Blower Fan China Made

Product Features

Capable of outputting higher outlet pressure while providing more gas flow with lower noise. Stable operation at higher media temperatures.
Fan speed can be flexibly set by matching different pulley diameters to make the fan run at the highest efficiency point and reduce energy waste.
Motor sliding guides provided for easy tensioning of the belt to reduce energy loss due to belt slack.
Bearing housing reserved for temperature and vibration sensor mounting positions, convenient for installing fan operation monitoring devices.
Uses liquid lubricant - no need to open bearing housing to replace and fill oil. Observation window provided for easy monitoring of lubricating oil quality and quantity.
Bearing housing uses labyrinth mechanical seal with unique leak-proof oil design, vent hole at top, and sealant on joint, completely eliminating oil leakage possibility.
Impeller annealed to completely eliminate internal stress from welding, preventing creep and cracks.
Impeller subjected to high standard dynamic balance correction to ensure stable fan operation.
All products tested for running and vibration values after production for reliable operation.

Product Parameters

Technical specifications:

Series no.	5-12 series	Feature selection
Performance	Impeller diameter	400-3300mm
	Rotation speed	≤4000rpm
	Pressure range	684-8687Pa
	Flow range	590-700735m3/h
Structure	Blade type	Backward, Straight, Aerofoil type
	Impeller support	SWSI, DWDI, Overhung type
	Lubrication method	Oil bath, grease lubrication, lubrication oil station (can be specified)
Cooling method	Air cooling, Water cooling, Oil cooling (can be specified)
Driven mode	Direct driven, Coupling driven, Belt driven (can be specified)
Gas composition	Gas temperature	Normal, Customer request, ≥250ºC
Gas composition	Gas characteristic	Clean gas, Corrosive gas, Particulate dust, High temperature gas, Flammable/explosive gas

If you have requirements for our products, please provide your parameter information and our technical engineers will offer professional fan solutions.
